Showasaki
Vibrometer and Analyser
Model - 1022A

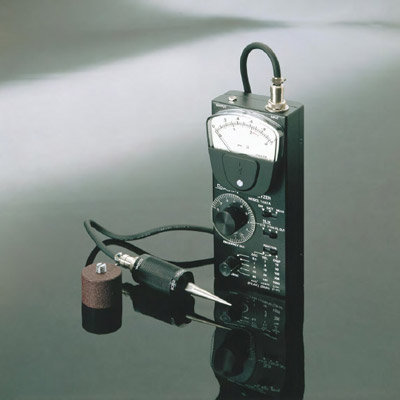

1. Compact and lightweight precision vibrometer for measuring vibrations of rotating and reciprocating machines, etc.
2. Applications include measurements of acceleration, velocity and displacement, MINI-VIBRO is most suitable for measuring very small vibrations.
3. Built-in frequency analayzing filter allows frequency analysis in a simple manner.
4. Velocity measuring function is conformed to JIS B0907(ISO2954)"Standard for Vibration Severity Measuring Instrument".
5. Vibration pickup can be hand-held or fixed with screws(M10)
6. Analog indication makes reading of fluctuating vibrations easier.
7. Recording output for recorder, oscilloscope, FFT analyzer, etc.
8. Pickup can be hand-held or fixing with a screw(M10).
9. Optional magent(MG-2)available for ease of fixing Pick up.
10. Power supply(dry cell 006P)assures continuous measurement for 24 hours.
Composition
| Mini-vibro | MODEL-1022A | 1pc |
|---|---|---|
| Electro ynamic pickup | MODEL-2008 | 1pc |
| Contact probe | 1pc | |
| Pickup cable 1m | CA2411-1 | 1pc |
| Output cable 1m | CA1311-1 | 1pc |
| Dry cell | 006P(9V) | 1pc |
| Carrying case | 1pc | |
| Instruction manual | 1copy | |
| Magnet holder | MG-2 | option |
Specifications
| Measurement full scale | (10 dB step,5 ranges) |
|---|---|
| a) Acceleration range | 0.3,1,3,10,30m/s2PEAK |
| b) Velocity range | 1.3,10,30,100mm/sRMS |
| c) Displacement range | 10,30,100,300,1000μmp-p |
| Rectifier | True RMS |
| Indication | Acceleration…EQ Peak Velocity…True RMS Displacement…EQ P-P |
| Frepuency range | 10-1000Hz |
| Analysis filter | 10-1000Hz Q=10 |
| Accuracy | Within 3% on the amplitude measurement of sinusoidal wave 80Hz 10mm/sRMS |
| AC Output | ±1V/F.S |
| DC Output(option) | +1V/F.S |
| Temperature range | Operation 0°C-50°C Warehouse -20°C-+70°C |
| Power supply | Dry cell 006P(9V) ‚Ppc 16 hours or more continuous operation |
| Dimensions, weight | Mini Vibro W85×H190×D55mm 700g Pickup H72×D30mm 140g Contact pin L55mm 20g Magnet holder H30×D40mm 260g |
